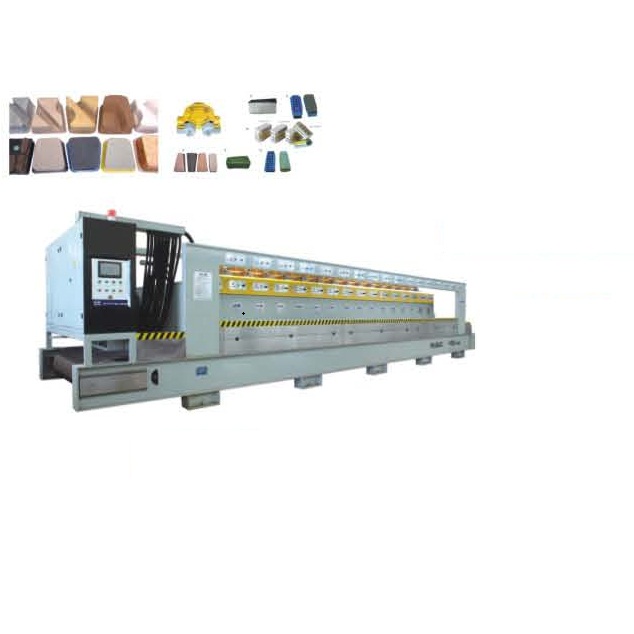

TJHLL-G(TJHLL-M)-10C/12C/16C/20C Automatic polishing machine for quartz, granite and marble-продукт-Китайская торговая компания"Сямыньский Восточный Пегас"

For one whole set, it includes two sets of conveyors, one loading table, one unloading table, one set of air blower, one set of air compressor.

The main machine parts are made in famous brand, quality can be ensured to be good. Welcome to discuss with us about the machine details online.

Model		TJLD-G-12C-2000	TJLD-G-16C-2000	TJLD-G -20C-2000
Diameter of polishing plate	mm	500	500	500
Qty. of polishing heads	pcs	12	16	20
Max. slab width	mm	2000	2000	2000
Swing speed of beam	m/min	3-35	3-35	3-35
Driving motor power of beam	kw	6	8	8
Belt transfer speed	m/min	0.5-4.0	0.5-4.0	0.5-4.0
Belt transfer motor power	kw	3	4	4
Pressure of cooling water	mp	0.1-0.15	0.1-0.15	0.1-0.15
Pressure force of compressor	mpa	0.7	0.7	0.7
Main motor power	kw	12*15KW	16*15KW	20*15KW
Total power	kw	190	260	320
Water consumption	m³/h	15	20	25

Automatic Multi-Heads Resin Granite Polishing Machine
